Description

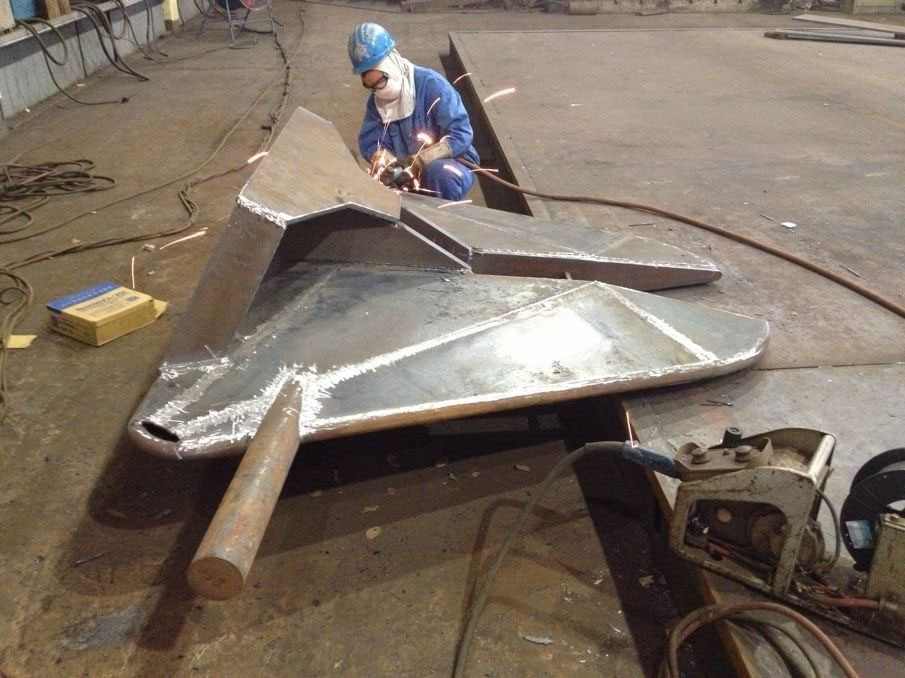

WS MK3 Anchor:
WS MK3 Anchor is the improved version of drag Anchor, equipped with an enlarged crown and fluke area and a streamline shank for more efficient penetration, this anchor is used in drag and drilling activities.
This anchor approved by International class society.
Main Dimension( mm in dimension, KGS in anchor weight)
| Weight | A | B | C | D | E | K | L | S |
| 1000 | 2429 | 2654 | 1559 | 2023 | 737 | 1010 | 412 | 60 |
| 1500 | 2774 | 3038 | 1785 | 2316 | 843 | 1156 | 471 | 65 |
| 3000 | 3493 | 3828 | 2249 | 2918 | 1063 | 1456 | 594 | 80 |
| 5000 | 4120 | 4538 | 2667 | 346 | 1260 | 1727 | 704 | 80 |
| 7000 | 4602 | 5077 | 2983 | 3871 | 1409 | 1932 | 788 | 90 |
| 9000 | 5012 | 5521 | 3244 | 4209 | 1533 | 2100 | 857 | 100 |
| 12000 | 5516 | 6076 | 3570 | 4632 | 1687 | 2312 | 943 | 110 |
| 20000 | 6372 | 6986 | 4100 | 5324 | 2048 | 2674 | 1083 | 160 |
| 30000 | 7289 | 7997 | 4694 | 6094 | 2345 | 3061 | 1240 | 180 |
